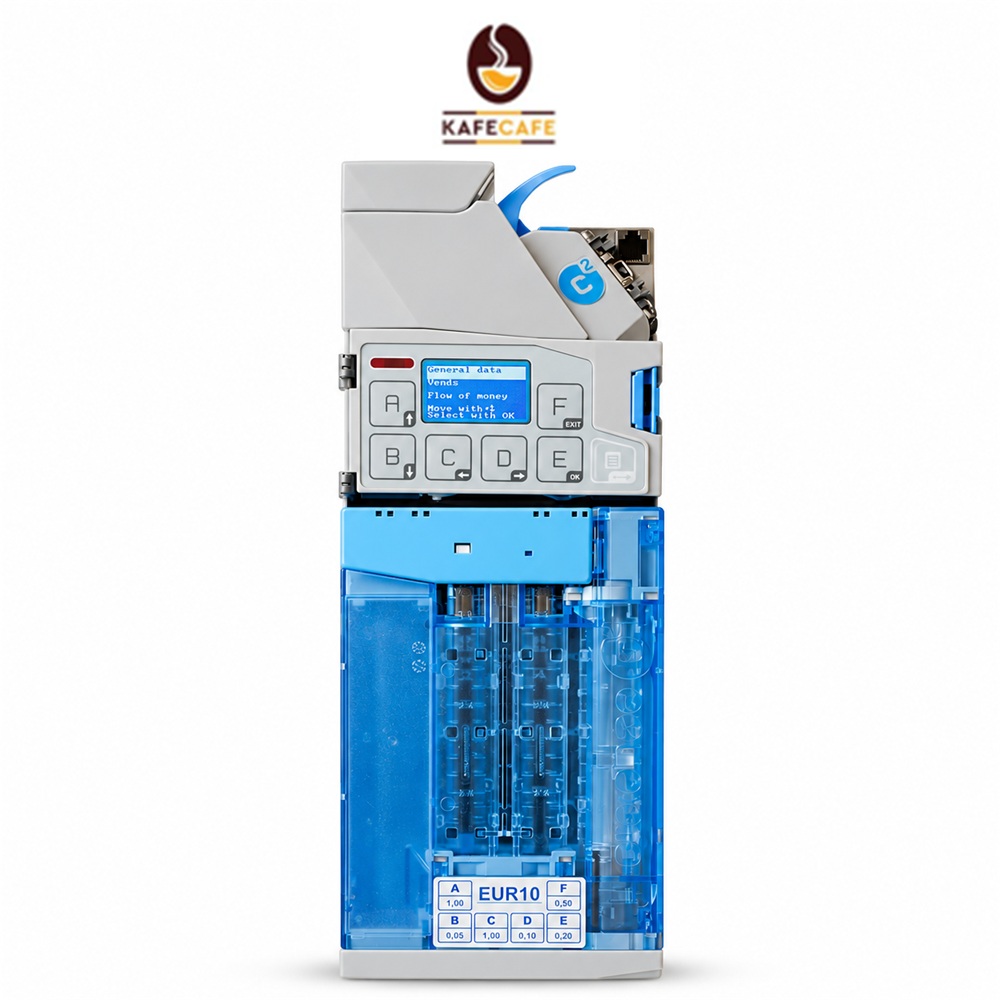

Currenza C² Blue Euro Coin Changer
Model: C2-B6M-FL-EUR/0-EUR16
The Currenza C² Blue is an advanced six-tube coin changer designed for professional vending machines and automated retail applications. Its high-capacity, self-refilling tube system provides accurate euro-coin validation, dependable change distribution and reduced machine downtime.
EUR16 Cassette Configuration
This unit is supplied with a six-tube EUR16 cassette configured to return the following euro coins:
Selected denominations are duplicated across the six tubes to provide additional change capacity and maintain reliable operation during periods of frequent use.
Main Features
- Six self-refilling coin tubes.
- PRP Payout Redundancy Protection system.
- Three independent payout motors for increased operational reliability.
- Accurate euro-coin validation using MFT technology and up to 40 recognition parameters.
- Processes up to three incoming coins per second.
- Pays out up to six coins per second.
- Smart payout optimisation based on the machine configuration and customer payment behaviour.
- Integrated optical sensors for dependable operation in demanding environments.
- Blue version with display, service keypad and intuitive programming menu.
- Configuration and diagnostics available through the integrated keypad or MatiTech app.
- Modular cassette design for straightforward cleaning, servicing and replacement.
- Easy access to the coin-validation and sorting areas.
- Compatible with MDB vending-machine systems.
Flexible Vending Prices
The combination of 10-cent, 20-cent, 50-cent and €1 payout coins makes the unit suitable for a wide range of vending prices, including:
- €0.80
- €1.00
- €1.20
- €1.30
- €1.50
- €1.70
- €1.80
- €2.00
- €2.20
- €2.50
For example, a product priced at €0.80 requires 20 cents change from a €1 payment. A €1.30 sale can return 50 cents and 20 cents from a €2 payment, while a €1.70 sale can return 20 cents and 10 cents.
Technical Specifications
| Model | C2-B6M-FL-EUR/0-EUR16 |
|---|
| Version | Currenza C² Blue with display and service keypad |
|---|
| Interface | MDB |
|---|
| Change cassette | EUR16, six self-refilling tubes |
|---|
| Payout denominations | €0.10, €0.20, €0.50 and €1.00 |
|---|
| Dimensions | 137.75 × 377.10 × 80 mm |
|---|
| MDB power supply | 18–43 V DC |
|---|
| Operating temperature | -25°C to +80°C |
|---|
| Maximum acceptance speed | Up to 3 coins per second |
|---|
| Maximum payout speed | Up to 6 coins per second |
|---|
Suitable Applications
- Coffee vending machines
- Snack and cold-drink vending machines
- Combination vending machines
- Automated retail points
- Self-service equipment
Important: Please confirm the vending machine’s MDB connection, available installation space and power supply before ordering. Installation and configuration should be completed by a suitably qualified vending technician.
Installation and Payment-System Compatibility
KAFECAFE supplies this product on a supply-only basis. Installation, programming, configuration and connection to any vending machine, payment system, cashless device or other third-party equipment are not included.
The customer is responsible for confirming compatibility before purchase and for arranging installation and configuration by a suitably qualified technician. KAFECAFE shall not be responsible for any incompatibility, connection failure, installation cost, loss or damage arising from installation, programming or configuration carried out by the customer or any third party.
